OPCD

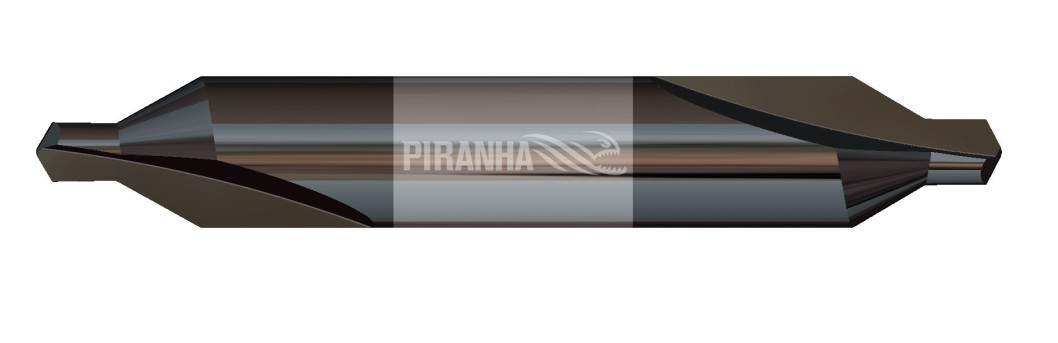

2 FLUTE COUNTERSINK DRILL
P
Steel
M
Stainless steel
K
Cast Iron
S
High temperature
H
Hard
Specification
- Made of solid carbide
- 118° tip angle
- Double-ended
- Size #0-1-2-3-4-5-6
- Bright finish for gummy metal
Characteristics
| Material | Carbide |
|---|---|
| Surface | nACRo |
| Dia. Range | 1/32" - 7/32" |
| Flutes | 2 |
Choose your specification to get your price
Imperial| Diameter | Size | Angle | Coating | |
|---|---|---|---|---|
| 1/32 | 0 | 60 | ||
| 1/32 | 0 | 60 | nACRo | |
| 3/64 | 1 | 60 | ||
| 3/64 | 1 | 60 | nACRo | |
| 5/64 | 2 | 60 | ||
| 5/64 | 2 | 60 | nACRo | |
| 7/64 | 3 | 60 | ||
| 7/64 | 3 | 60 | nACRo | |
| 1/8 | 4 | 60 | ||
| 1/8 | 4 | 60 | nACRo | |
| 3/16 | 5 | 60 | ||
| 3/16 | 5 | 60 | nACRo | |
| 7/32 | 6 | 60 | ||
| 7/32 | 6 | 60 | nACRo |
