OPRI

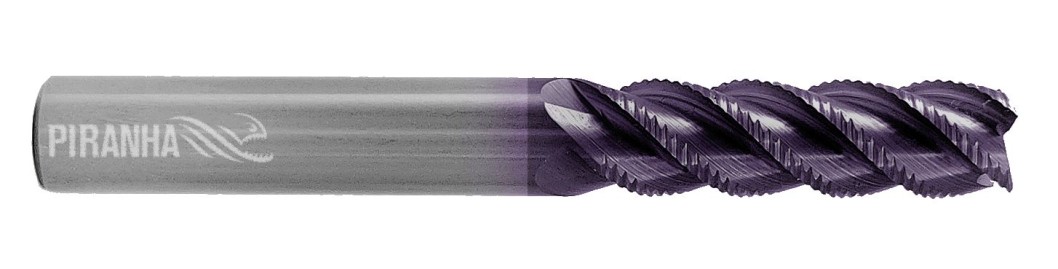

4 FLUTE ROUGHING END MILL
H
Dur
S
Haute température
K
Fonte
M
Acier inoxidable
P
Acier
Especificaciones
- Knuckle rougher geometry for smooth machining and high roughing capacity
- TiAlN PVD Coating provides excellent wear resistance and extends tool life
- Coolant through available
- Available with standard NAS flat weldon
- Center cutting for plunging and ramping operations
- Edge prep makes the cutting edge more uniform which helps the tool to machine better and faster
Características
| Material | Carburo |
|---|---|
| Superficie | TiAlN |
| Rango de diám. | 1/4" - 1/2" |
| Flautas | 4 |
Seleccione sus especificaciones para obtener un presupuesto
Imperial| Diámetro | L. C. | L. GRAL. | Chamfer |
|---|---|---|---|
| 1/4 | 3/8 | 3 | |
| 1/4 | 1/2 | 3 | |
| 1/4 | 3/4 | 3 | |
| 1/4 | 1 | 3 | |
| 3/8 | 1/2 | 3 | |
| 3/8 | 3/4 | 3 | |
| 3/8 | 1 | 3 | |
| 3/8 | 1 1/4 | 3 | |
| 1/2 | 5/8 | 3 | |
| 1/2 | 1 | 3 | |
| 1/2 | 1 1/4 | 3 | |
| 1/2 | 1 5/8 | 4 | |
| 5/8 | 3/4 | 4 | |
| 5/8 | 1 5/8 | 4 | |
| 3/4 | 1 | 4 |
