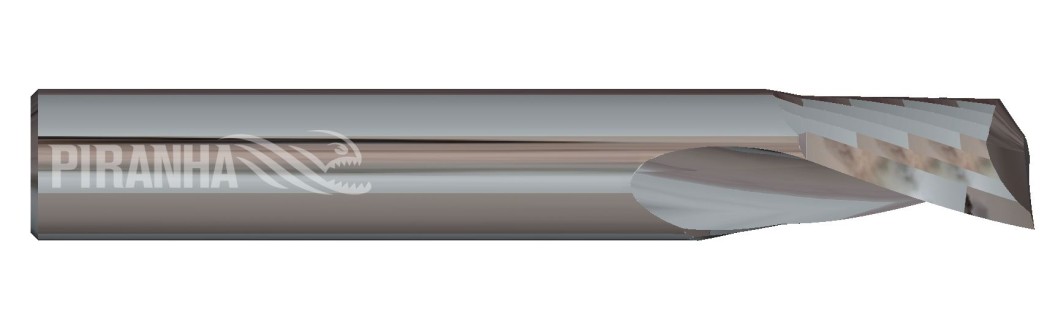

OPSF
SINGLE FLUTE
N
Aluminium
Especificaciones
- Single spiral upcut flute for high speed machining and superior chip evacuation
- Available in Stub and Long flute lenght
- Polished to prevent chips from sticking inside the tool
- Dish angle for best ramping and plunging
Características
| Material | Carburo |
|---|---|
| Superficie | |
| Rango de diám. | 1/8" - 3/8" |
| Flautas | 1 |
Seleccione sus especificaciones para obtener un presupuesto
Imperial| Diámetro | L. C. | L. GRAL. | |
|---|---|---|---|
| 1/8 | 3/8 | 1 1/2 | |
| 1/8 | 1/2 | 2 | |
| 3/16 | 9/16 | 2 | |
| 3/16 | 1 | 3 | |
| 1/4 | 1 | 3 | |
| 1/4 | 1 1/4 | 3 | |
| 3/8 | 9/16 | 2 1/2 | |
| 3/8 | 1 | 2 1/2 | |
| 3/8 | 1 1/2 | 4 |
